Press-In Nuts
PRESS-IN NUTS
TYPES
M-S, M-SS, M-CLS, M-CLSS, M-SP,
M-CLA, M-SMPS
Quick, convenient assembly using standard tools, high push out & torque-out resistance; distortion free installation; reverse side remains flush; thread sizes #2 to ½” and M2 to M13
MATERIALS AND FINISHES:
Type M-S, M-SS: heat treated carbon steel, zinc plate
Type M-CLS, M-CLSS, M-SMPS: 300 series stainless steel, passivation
Type M-SP: precipitation hardening grade stainless steel, passivation
Type M-CLA: 2024-T4 aluminium, none
(M-SS, M-CLSS refers to M5 sizes only)
FOR USE IN SHEET HARDNESS:
Type M-S, M-SS: HV160 or less
Type M-CLS, M-CLSS, M-SMPS: HV130 or less
Type M-SP: HV195 or less
Type M-CLA: HV95 or less
THREAD SIZE AND LENGTH SELECTION DATA
TYPES M-S, M-SS, M-CLS, M-CLSS
TYPE M-CLA

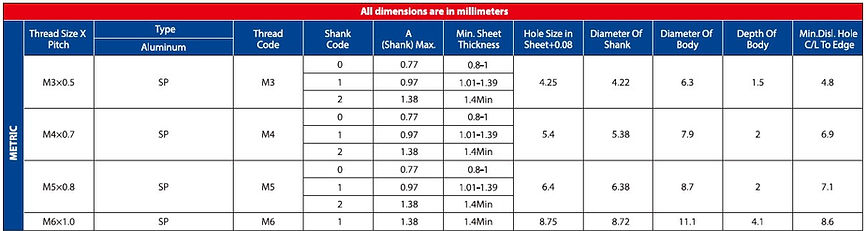

TYPE M-SP
TYPE M-SMPS (FOR ULTRA-THIN SHEET)
PERFORMANCE DATA
TYPES M-S, M-SS, M-CLS, MCLSS
TYPE M-SMPS
TYPE M-SP
